Properties

Frozen columns

Specifies the number of columns that will be locked to the left side of the worksheet.

Lock the worksheet

Prevents the user from adding, removing or rearranging columns in the worksheet.

Font & Color Settings

Allows the user to specify the font type, style, size, color of text and even background color of the cell.

Add / Remove / Toggle visibility

Any worksheet can be floated or undocked from the main window and be displayed on a secondary monitor.

Add Worksheet

Creates a new worksheet with only “Date”, “Time” and “Cum Time” columns displayed by default.

Remove “Worksheet Name”

Easily deletes the currently selected worksheet.

Toggle visibility

By using the check mark the user can show (checked) or hide worksheets.

Menus

BlackBerry Summary to Clipboard

Copies each column from this row into the clipboard as a list of Title - Value - Unit groupings to paste into emails or as a remark.

Trend Grid

To be used during data acquisition. When enabled, the grid will automatically scroll up to display the most recent reading.

Column configuration

• Moving

• Resizing - Column width

• Resizing - Header row height

• Resizing - Data row height

Properties

Plot properties

Number of the horizontal/vertical steps, showing the legend, plot and background color, font type and color for title and subtitle.

Individual Axis properties

Minimum, maximum, line type, line style, symbol style, positive value only, logarithmic.

Annotation Properties

Arrow appearance, box appearance, show title, remarks, arrow, X-value, Y-value, additional curves.

Zoom, Pan, Trend, Auto Scale

Add / Remove / Toggle visibility

Any plot can be floated or undocked from the main window and be displayed on a secondary monitor.

Add Plot

Creates a new plot, by default the x-axis is date time.

Remove “Plot Name”

Easily deletes the currently selected plot.

Toggle visibility

By using the checkmark the user can show (checked) or hide plots.

Advanced options

Coordinate, Logarithmic(Log-Log), Semi-log (Log-X or log-Y)

Set any axis as Logarithmic from the properties panel.

Non-DateTime X-axis on plot

Set any of the numeric columns as bottom axis.

Line style

Connected, Rate, Stepped step first, Stepped run first.

Left, Right, merged Axis

Any Y-axis can be shown individually or merged with others on left or right side.

Add / Remove / Toggle visibility

Any canvas can be floated or undocked from the main window and be displayed on a secondary monitor.

Add Canvas

Creates a new empty canvas.

Remove “Canvas Name”

Easily deletes the currently selected canvas.

Toggle visibility

By using the check mark the user can show (checked) or hide canvases.

Single item menu

Easy to use interface for fine tuning.

Group items menu

Alignments can be done all at once.

Rich Text Format

Add an Rtf from the toolbar, then double click to start editing.

All supported editing tools are accessible from the context menu.

Properties

• Managing Printers and Paper size.

• Collate printing order.

• Update and manage page margins.

• Manage print page range.

• Add, review and customize items to the report.

• Update and manage headers and footers.

• Specify filter settings and apply them as necessary.

Specify filter setting and apply them as necessary

Filtering condenses worksheets with real-time readings of 1 minute or less into 15 or 30 minute readings making them more manageable for reporting.

Each worksheet has its own filter setting allowing for reports to be focused on specific times or event sequences that occurred during operations.

Update and manage headers and footers

Headers and footers are built independently from the worksheet, plots and canvases and are applied to these items when printing.

A header or footer can be assigned as the default for all pages or they can be attached to an individual print item.

Headers and footers can include Images, custom text, property data and special items.

Export as PAS (Pressure ASCII Standard) file

Alberta

British Columbia

Export to CSV file

Generate an Excel files from any worksheet or filtered worksheet.

Specify additional information for inclusion into the file.

Custom formats available.

Fluid Calculations

Fluid rates can be calculated using any of the following meter types:

• Volume measuring devices

• Rate measuring devices

• Coriolis meter using AGA 11

• Level with constants or tank tables

• Fluid Injection volume meters to determine load to recover

All fluid meters can separate the product stream into:

Oil, Stock Tank Oil, BSW Water, Water, Sediment and Proppant.

Calculations Options

Gas properties can be calculated using:

• AGA 8 Detail or Gross methods

• Benedict Webb Rubin equation of state method (BWR)

• Monitor a comingled mixture of any of these 3 (N2, CO2, C1, C2, C3) frac gases and report net reservoir gas.

• Monitor CO2 emissions

Oil shrinkage, GOR2 and liberated gas are calculated using:

• ASTM 1250D for API

• Vasquez & Beggs

• AlMarhoun

Load Columns

Connect to WDSS Prime to coordinate which data series from WDSS DashBoard are required for transmission.

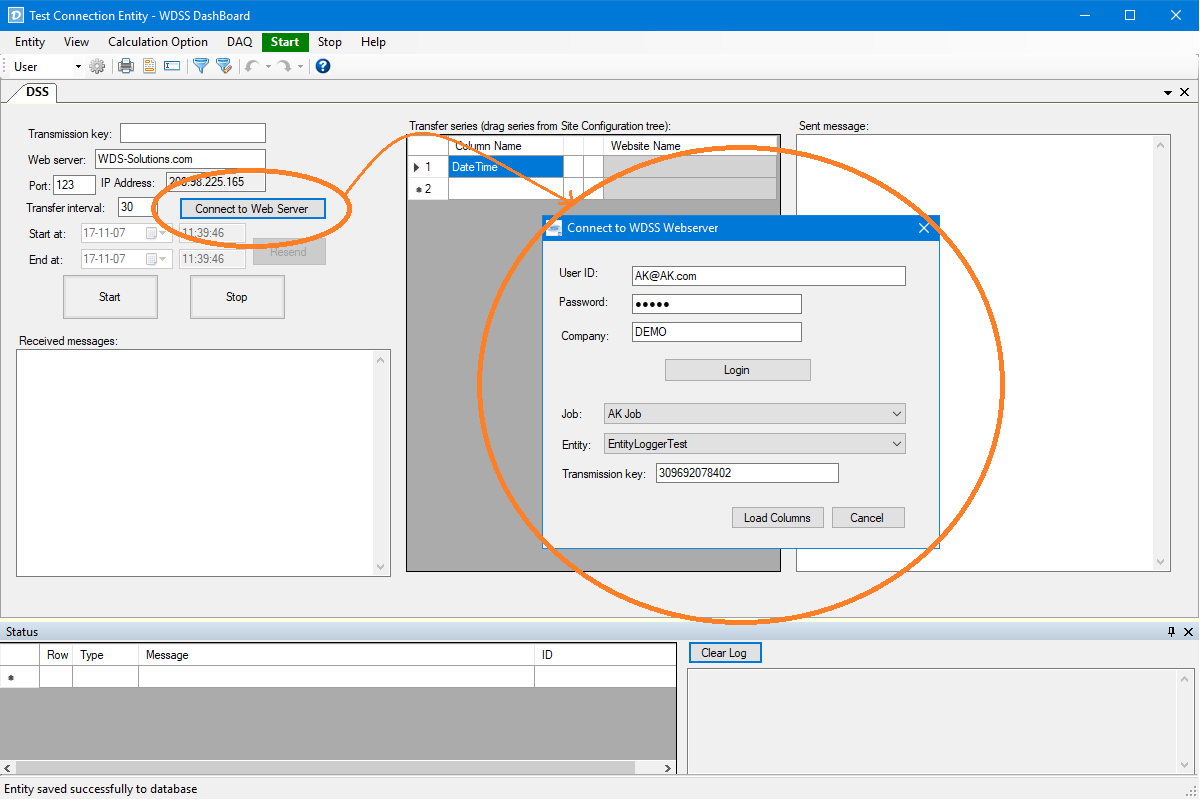

Setup the Connection

Link sensors from WDSS DashBoard by dragging the column name from the “Site Configuration” panel and placing it beside website name.

Start Transmission

Your data is now live and accessible from any web-connected device or mobile device.

Prime - View

Monitor activities across the web and make informed decisions in real-time.

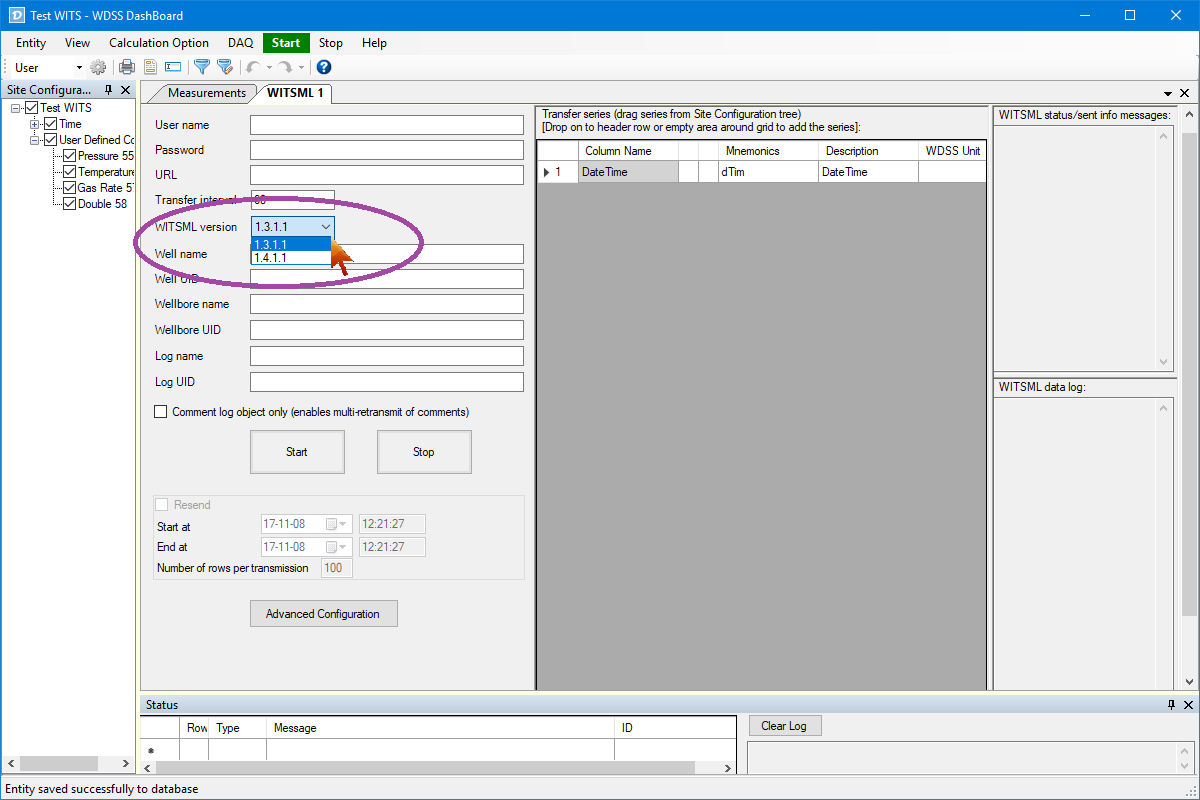

Support transmission to a WITSML server

WDSS DashBoard can transfer data as objects to a WITSML server.

WITSML version 1.3.1.1 and 1.4.1.1 are both supported.
